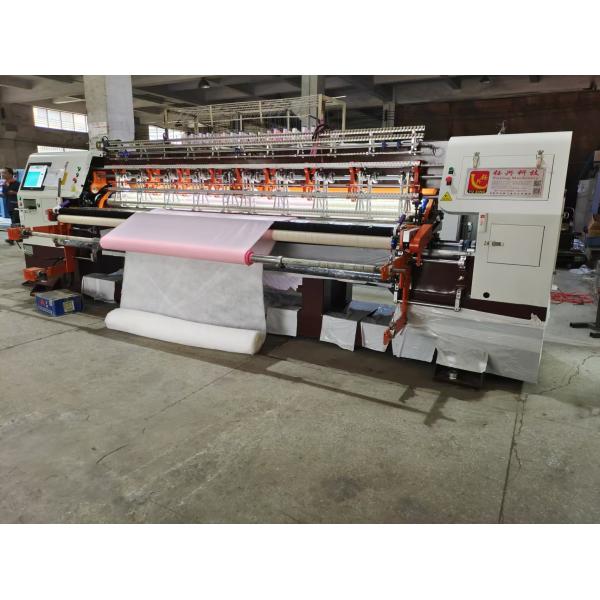

82 Inch Blanket Quilt Making Machine With Edge Cutting Device

Brand Name : Yuxing

Model Number : YXS-82-3D

Certification : CE ISO9001

Place of Origin : China

MOQ : 1 SET

Price : Negotiable

Payment Terms : L/C, T/T

Supply Ability : 25 SETS/MONTH

Delivery Time : 15 days

Packaging Details : Export packing

Product name : machine for quilt production

Quilting width : 82 inch (210cm)

Running speed : Max.1200rpm

Sewing thickness : Max.50mm

Output : Max. 240m/h

Weight : 5200kg

Contact Now

82 Inch Multi Needle Blanket Quilting Machine With Edge Cutting Device 1200RPM

This blanket quilting machine is a kind of multi needle quilting machine. It has edge cutting device installed on machine. It is mainly used for quilt, pajamas, blanket.

Edge cutting device strength
No matter what kind brand cutter machine, there are always below shortages: 1 when using the vertical cutting(slitting and egde cutting), the fabric is easy to run at sides, which cause it cut not that acurrate size. 2. when cutting, it is easy to get snag, means the cutted place not that neat. 3. it is not convenient to sharpen the knife.

While the new kind cutter, we use the edge cutting device on machine, the quilting machine roller can pull fabric tight, so when cutting edge, fabric won't go sides, so it cut more acurrately. and it is suitable to different kind fabric(except the non-glue cotton, this fabric easy to make knife get stuck), when cutting, the cutting place is neat without snagging problem. Besides, each knife has one stone near it, you only need to press button, stone will sharpen knife automatically.
82 Inch Blanket Quilt Making Machine With Edge Cutting Device
The edge cutting device is optional. The standard machine does not include this.

Quilting machine advantage

  • Machine body and foot are reinforced. More stably on running.
  • Automatic oil adding device for bearings maintenance.
  • Adjust speed by computer 500r-1200r/min, stitch length is adjustable(2mm-8mm) from computer .
  • New upgraded computer system, compatible with embroidery file format(DST/DSB)
  • Pattern compensation function.
  • Auto stop sensor detect thread condition, when thread broken, machine automatically stop.
  • 180 degree and 360 degree random quilting patterns, and limited multi span for tack and jump designs.

Specification:

Model name

YXS-82-3D

(L*W*H): mm

4425*1750*1700

Gross weight

5200kg

Maximum fabric width

2100mm

Distance between needle rows

76.2+76.2(3"+3")

Distance between needles

25.4

X-axis max. moving distance

204

Work thickness

≤50

Stitch

2-8

Estimate output

10-240m/h

Suggest needle type

#14,#16,#19

Main shaft rolling speed

500-1200rpm

Voltage

380V/50HZ; 220V/60HZ

Total Power

5500W

82 Inch Blanket Quilt Making Machine With Edge Cutting Device82 Inch Blanket Quilt Making Machine With Edge Cutting Device

Warranty Information:

  • Warranty Period: 1 year.

During the warranty period:

  • Machine parts (excluding consumable items like needles, hooks, loopers, etc.) are replaceable at no cost.
  • For computers, if a malfunction occurs under warranty, they can be sent back for repair or replacement after assessment.
  • Consumable parts are not covered by the warranty. Additional consumables are provided with the machine for approximately one year (refer to the packing list).

Lifetime Customer Support:

  • We provide lifetime after-service support. Customers can report any machine issues with photos and brief videos at any time. We will assist in troubleshooting through online guidance.
  • In situations of significant problems, upon request, a technician can be dispatched to the customer's location. Customers are responsible for covering visa fees, round-trip airfare, accommodation, and a daily technician labor cost of USD 150.
